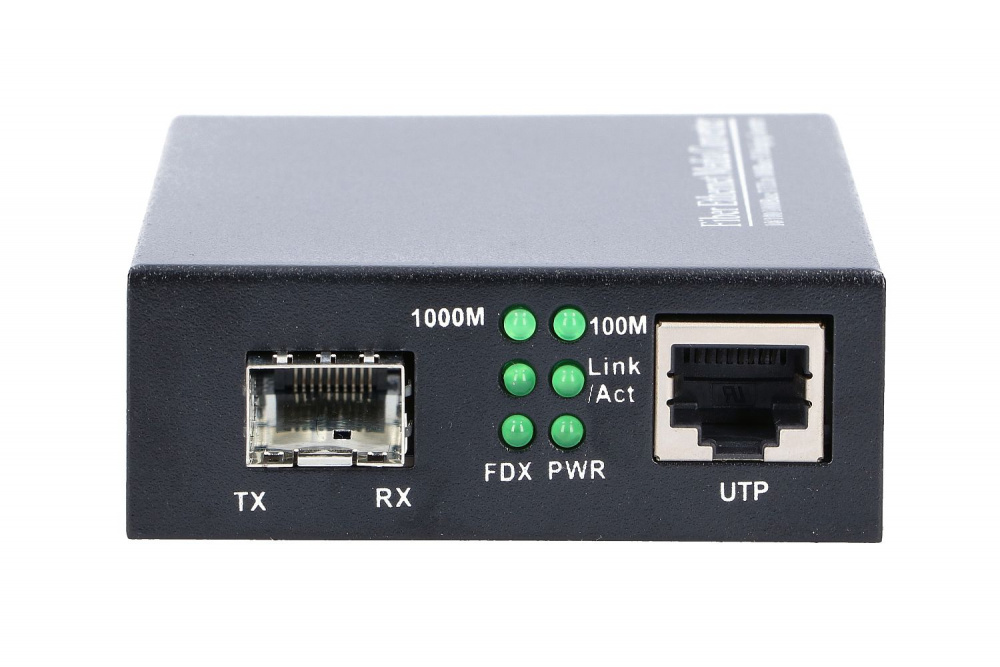

FIBER ETHERNET MEDIA CONVERTER 1X SFP 1000M 1X RJ45 1000M MC220

Art.nr: EX.3296
**Ta kontakt for leveringsinformasjon

-+
FIBER ETHERNET MEDIA CONVERTER 1X SFP 1000M 1X RJ45 1000M GIGABIT

This is a Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED
located in the front panel.

Features:

  • 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter
  • Standard : IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab
  • Interface: 1 x RJ-45 connector / 1 x SFP Slot
  • Plug-and-Play installation
  • Support Jumbo Frame (64-9216 Byte)
  • Conversion between different transmission speeds and media types
  • Standalone type or card type ,Can be installed into 2U 14/16 Slots chassis
  • Auto-negotiating Ethernet port (Half/Full Duplex)
  • Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)
  • Easy Installation, Easy Trouble shooting
  • Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device
