Hjem » Mikrotik » Ethernett Routers » Mikrotik hAP ax³ (C53UiG+5HPaxD2HPaxD), powerfull WiFi 6 router

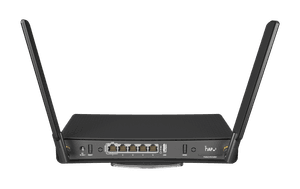

Mikrotik hAP ax³ (C53UiG+5HPaxD2HPaxD), powerfull WiFi 6 router

Art.nr: hAP ax³
-+
Mikrotik
10 På lager

MikroTik hAP ax³ - Revolutionary WiFi Router 6 AX1800

MikroTik hAP ax³ (hAP ax3, C53UiG 5HPaxD2HPaxD) is the latest dual-band wireless router in MikroTik's hAP series. Equipped with advanced WiFi 6 AX1800 technology, it offers unprecedented speed and range. With four Gigabit Ethernet ports and one 2.5 Gigabit Ethernet port with PoE-in and PoE-out functionality, the MikroTik hAP ax³ delivers unparalleled performance and flexibility.

Excellent Technical Parameters

The MikroTik hAP ax³ can simultaneously transmit a wireless network in two bands - 2.4 GHz and 5 GHz, reaching speeds of 574 Mbps and 1201 Mbps respectively. Equipped with a state-of-the-art quad-core 1.8 GHz ARM processor, as well as 1 GB RAM and 128 MB NAND memory, this router is ideal for handling the most demanding tasks, including complex firewall rules, IPsec encryption, Wireguard, BGP, advanced routing and VPN tunnels.

Maximum Safety and Performance

With support for advanced WPA3 encryption, the MikroTik hAP ax³ guarantees the highest level of network security. A built-in USB 3.0 port allows you to connect an additional LTE modem or use it for storage purposes. Advanced RouterOS software with a Level 6 license provides extraordinary configuration and network management capabilities.

Modern Dual-Band Radio

The MikroTik hAP ax³ features a state-of-the-art dual-band, dual-chain radio with 3.3-5.5 dBi range and support for 802.11ax with Wave2. Compared to the previous generation of WiFi 5, this router offers up to 40% higher speeds in the 5 GHz band and up to 90% higher speeds in the 2.4 GHz band. This makes the hAP ax³ one of the fastest and most efficient routers on the market.

Flexibility and Ease of Assembly

Like its predecessors, the MikroTik hAP ax³ can be mounted vertically, horizontally, or even on a wall without losing signal quality. The router is backward-compatible with older wireless standards, allowing seamless use with devices that only support 802.11ac.

Versatile Power Supply

The hAP ax³ can be powered via DC plug or passive PoE, with an input voltage range of 12 - 28 V DC. A 24 V DC 1.5 A power supply is included for complete flexibility of installation and use. The device has 2 antennas.

MikroTik hAP ax³ is synonymous with the highest quality, security and performance among WiFi 6 routers . Ideal for home, office and advanced networking applications .



https://mikrotik.com/product/hap_ax3
Mikrotik

Mikrotik

MikroTik is a Latvian company which was founded in 1996 to develop routers and wireless ISP systems. MikroTik now provides hardware and software for Internet connectivity in most of the countries around the world. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing. In 2002 we decided to make our own hardware, and the RouterBOARD brand was born. We have resellers in most parts of the world, and customers in probably every country on the planet. Our company is located in Riga, the capital city of Latvia and has more than 140 employees.

Specifications

Details
Product code C53UiG+5HPaxD2HPaxD
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 - 1800) MHz
Switch chip model IPQ-6010
RouterOS license 6
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $139.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3.3
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800

Ethernet

Details
10/100/1000 Ethernet ports 4
Number of 1G Ethernet ports with PoE-out 1
Number of 2.5G Ethernet ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 38 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

PoE-out

Details
PoE-out ports Ether 1
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.625 A
Max total out (A) 0.625 A
Total output current 0.625
Total output power 15

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
CPU temperature monitor Yes
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 20 -67
