UniFi U7 Lite – dual-band Wi‑Fi 7 access point

Art.nr: U7-Lite

Ubiquiti Networks

**Ta kontakt for leveringsinformasjon

Ventet inn 03/04/2025.

UniFi U7 Lite – dual-band Wi‑Fi 7 access point with 2.5 GbE PoE uplink

Product description
Ubiquiti’s UniFi U7 Lite is a compact, ceiling-mounted Wi‑Fi 7 access point that delivers fast, reliable wireless connectivity in a small form factor. Leveraging the latest Wi‑Fi 7 (802.11be) technology and dual-band operation (2.4 GHz and 5 GHz), the U7 Lite provides a significant throughput boost over the previous generation while retaining simple PoE-powered installation.

Key Features:

Dual-band Wi‑Fi 7 connectivity (2.4 GHz & 5 GHz) with 4 spatial streams (2×2 MU-MIMO per band).
Combined wireless throughput up to ~5 Gbps (4.3 Gbps on 5 GHz + 688 Mbps on 2.4 GHz) thanks to 240 MHz channel width on 5 GHz.
1× 2.5 GbE Ethernet port with PoE (802.3af/at) – high-speed uplink without bottlenecks and simplified single-cable deployment.
Supports 200+ concurrent clients and covers ~115 m² (1,250 ft²), ideal for small to medium deployments.
Advanced Wi‑Fi features: MU-MIMO, OFDMA, band steering, wireless uplink/mesh, and 802.11k/v/r fast roaming.
Seamless integration with the UniFi ecosystem – centrally managed via the UniFi Network application, supporting guest networks, VLANs, Wi‑Fi scheduling, and more.

https://techspecs.ui.com/unifi/wifi/u7-pro?s=eu

Ubiquiti Networks

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Technical specification:

Mechanical
Dimensions	Ø206 x 46 mm (Ø8.1 x 1.8")
Weight	680 g (1.5 lb)
Enclosure materials	Polycarbonate, metal
Mount material	Mounting bracket: stainless steel (SUS304) Backing plate: galvanized steel (SGCC)
Hardware

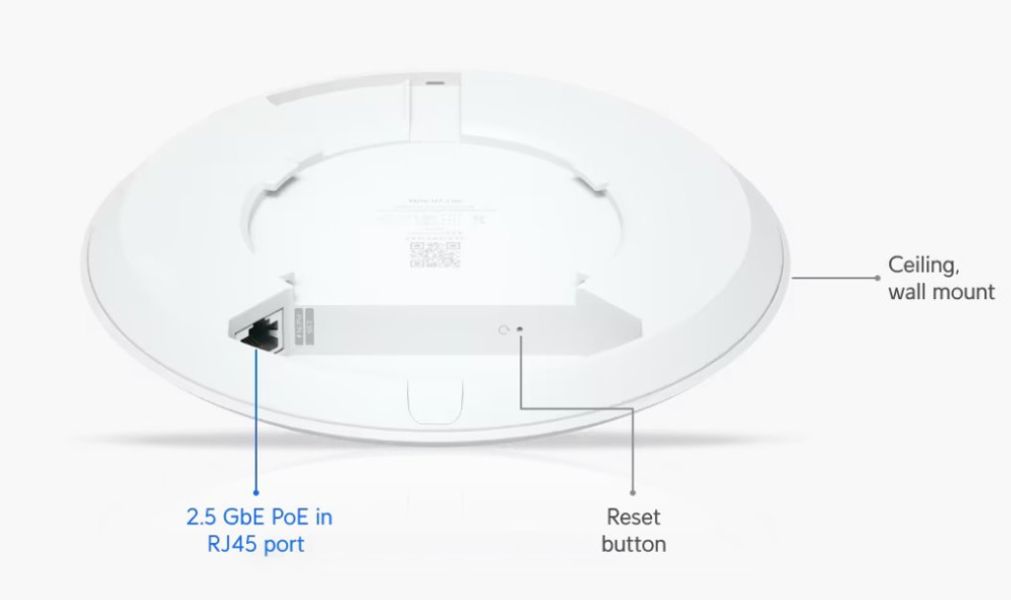

Networking interface	(1) 2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	44—57V DC
Max. power consumption	21W
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm 23 dBm
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 2 x 2 2 x 2
Throughput rate 2.4 GHz 5 GHz 6 GHz	688 Mbps 2882 Mbps 5765 Mbps
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 6 dBi 5.8 dBi
LEDs	White/blue
Button	Factory reset

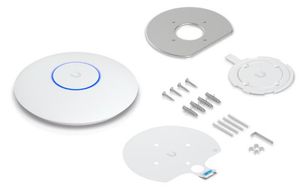

Mounting	Wall/ceiling (Included)
Operating temperature	-30 to 60° C (-22 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network	Version 8.0.7 and later
UniFi OS	Version 3.2 and later
